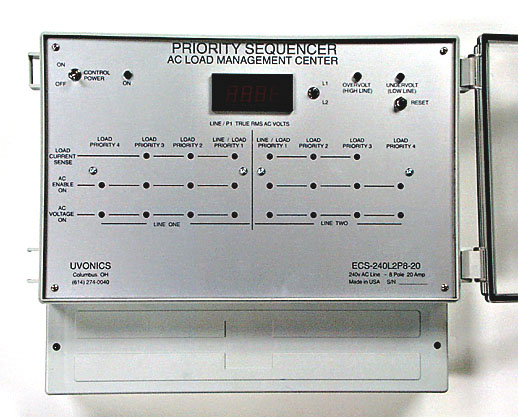

EXAMPLE 4 : DUAL ONE-OUT-OF-FOUR
[ Left and right halves of unit are independent ]
[ All Loads 240 volt or 240/120 volt mixed ]
Line 1 |   | Line 2 |   |
Load Priority | Load Example | Load Priority | Load Example |
P1 | Well Pump | P1 | Walk-in Freezer |
P2 | Refrigeration Compressor 1 | P2 | HVAC Compressor |
P3 | Refrigeration Compressor 2 | P3 |   |
P4 | Battery Bank Charger | P4 | Battery Bank Charger |
